Panasonic

Multi-layer Circuit Board Materials

With factories world-wide, Panasonic is one of the most recognized names in Circuit Board Materials offering one of the broadest product portfolios in the industry ranging from flexible circuit materials to Halogen-Free materials to ultra high speed/low loss materials.

KEY PRODUCTS

MEGTRON Series
MEGTRON 8
Ultra Low Loss, Tg 220°C, Dk 3.1, Df .0012, Td 370°C
MEGTRON 7
Ultra Low Loss, Tg 200°C, Dk 3.6, Df .0015, Td 400°C
MEGTRON 6/6G
Ultra Low Loss, Tg 185°C, Dk 3.7, Df .002, Td 410°C
MEGTRON 4
Low Loss, Tg 176°C, Dk 3.8, Df .005, Td 360°C
HIPER Series
R-1755V
High Tg, FR4, Tg 173°C, Dk 4.4, Df .016, Td 350°C

For Sales & Service Inquiries, contact

Jeff Cassell

Jeff Cassell

Phone (905) 670-8400 ext.1215


For Technical Info, contact

Rick Lovelady

Rick Lovelady

Phone (714) 825-0404 ext.2123

Supply Partner: Panasonic

MEGTRON

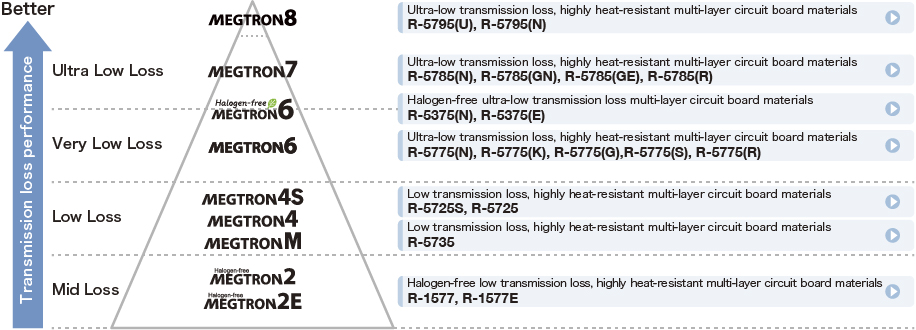

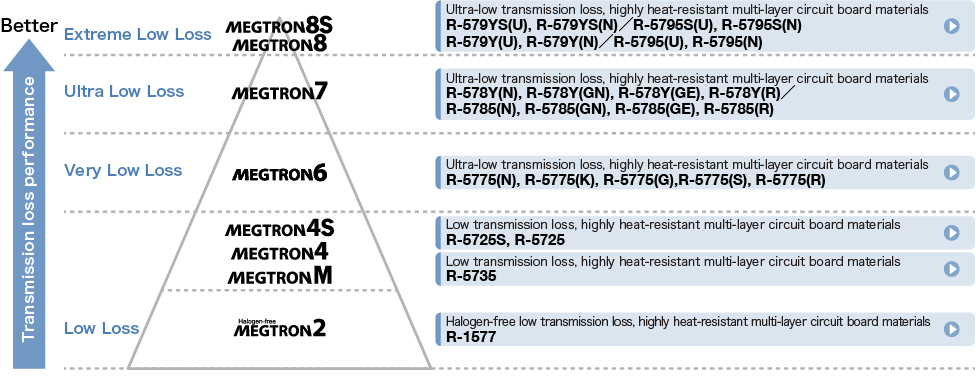

Transmission Loss Performance Ranking

Frequency Dependence by Transmission Loss

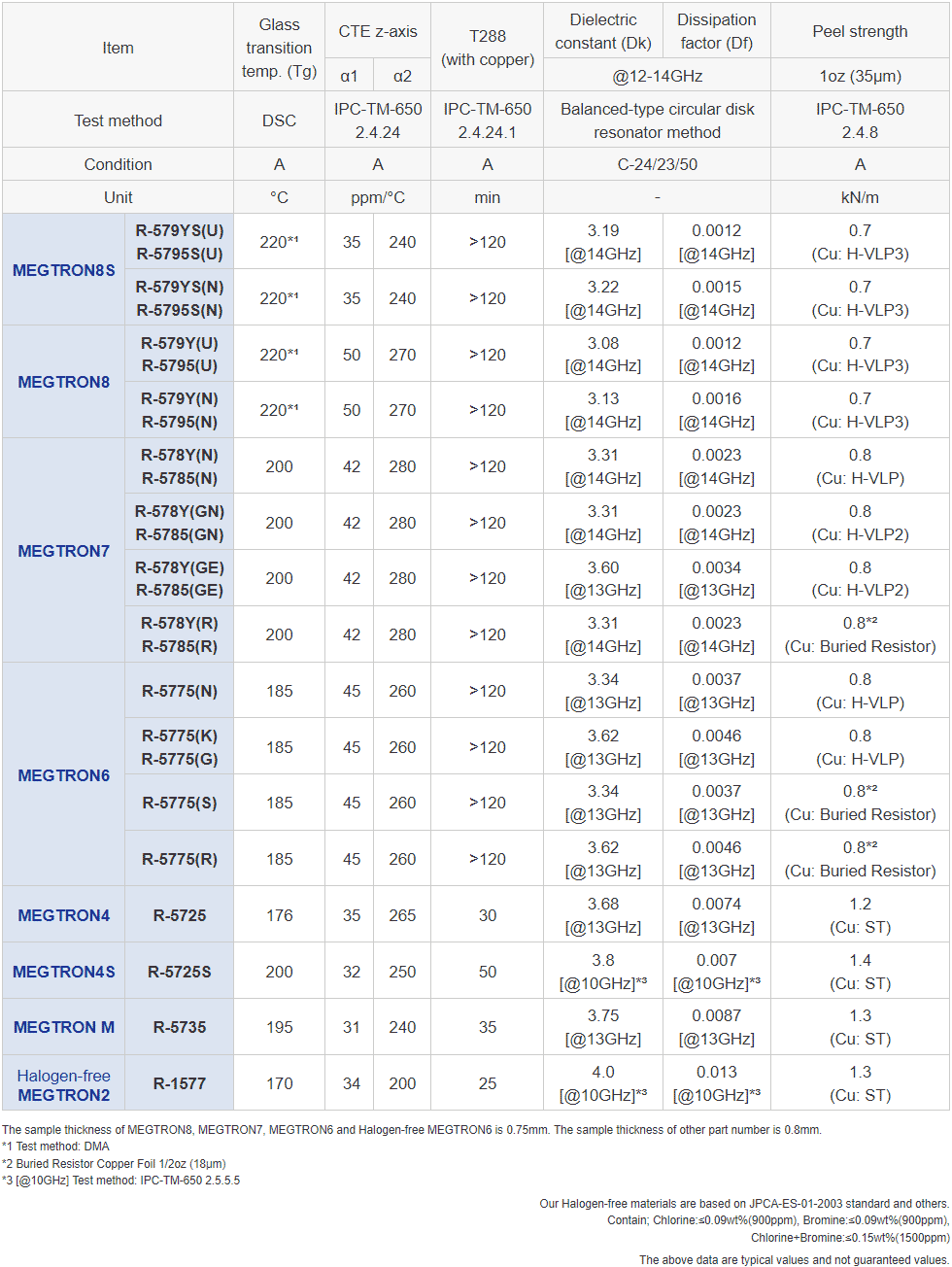

General Properties
